$990.00
5/6-channel Plug & Play amplifier with integrated DSP, MATCH Extension Card slot and 2 RCA outputs
The PP 62DSP provides everything an up-to-date Plug & Play amplifier needs: easy installation, maximum flexibility, and incredible performance.
Its installation effortlessly takes place via Plug & Play cable harness which is included in delivery – no cable has to be cut or modified.
The MATCH Extension Card (MEC) slot makes it possible to expand the PP 62DSP’s functionality by inserting an optional MEC module – for example a Bluetooth® Audio Streaming module, an optical digital input or a High-Resolution Audio USB soundcard. In addition, the PP 62DSP offers the option of hooking up additional amplifiers using the two-channel pre-amp output.
Sound enthusiasts get their money´s worth as well – thanks to the professional and user-friendly Audiotec Fischer DSP PC-Tool software it becomes amazingly easy to create individual sound setups. Furthermore, the PP 62DSP is optionally configurable as a 6-channel amplifier with a total of 8 DSP channels. Due to the numerous adjustment options, it leaves nothing to be desired.
Amplifier Class
Inputs
DSP-Features
Hardware Technologies
Additional Features
MATCH Extension Card slot
It is possible to extend the functionality of the MATCH PP 62DSP amplifier by inserting an optional MATCH Extension Card (MEC) – for example a Bluetooth® Audio Streaming module, an optical digital input or an AUX input.
Smart high-level input ADEP.2
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a usual amplifier will be hooked up, failure messages and loss of specific features (e.g. fader function) are often the result. Additionally, new power stage concepts in some radios may cause asymmetrical output signals which lead to distortion in the AD converters.
The new ADEP.2 circuit (Advanced Diagnostics Error Protection, 2nd generation) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Power Save Mode
The “Power Save Mode” is incorporated in all car-specific setups as well as in the basic setup of the DSP PC-Tool software. It allows to significantly reduce the power consumption of the PP 62DSP (or any additional connected amplifier) once there’s no input signal for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the car radio (and therefore the PP 62DSP as well) remains “invisibly” turned on for up to 45 min. after leaving the car!
Once the “Power Save Mode” is active the output stages of the PP 62DSP and its remote output will be turned off, thus reducing the current draw to less than 250 mA. The amp will turn again to full operation within 2 sec. if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save made” via the DSP PC-Tool.
MicroSD
The MicroSD card reader allows us to easily configure the DSP inside the amplifier without the need to directly connecting a personal computer. A large number of car-specific setups are available for free on www.audiotec-fischer.com.
Simply download your desired setup and copy it to any MicroSD card. Finally insert the MicroSD card into the PP 62DSP and the copy process will start automatically. After that, the amplifier is perfectly programmed to dramatically upgrade the sound quality of your car factory audio system.
Note: “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Audiotec Fischer GmbH is under license. Other trademarks and trade names are those of their respective owners.”
| – @ 4 Ohms | 4 x 35 / 70 Watts (Font/Rear channels) |
| – @ 2 Ohms | 4 x 50 / 100 Watts (Font/Rear channels) |
| – @ 1 Ohm | – |
| – bridged @ 4 Ohms | – |
| – bridged @ 2 Ohms | – |
| – Subwoofer output @ 4 Ohms | – |
| – Subwoofer output @ 2 Ohms | 1 x 160 / 320 Watts (4 channels each 40 / 80 Watts) |
| Amplifier technology | Class AB |
| Inputs | 4 x Highlevel speaker input 1x MEC 1 x Remote In |
| Input sensitivity | Highlevel 5 – 11 Volts |
| Input impedance RCA / Cinch | – |
| Input impedance highlevel | 13 Ohms |
| Outputs | 8 x Speaker output 2 x RCA / Cinch 1 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz – 22,000 Hz |
| DSP resolution | 56 Bit |
| DSP power | 172 MHz |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: BurrBrown D/A: BurrBrown |
| Signal-to-noise ratio digital input | – |
| Signal-to-noise ratio analog input | 103 dB (A-weighted) |
| Distortion (THD) | < 0.01 % |
| Damping factor | > 100 |
| Operating voltage | 10.5 – 16 Volts (max. 5 sec.down to 6 Volts) |
| Idle current |
670 mA |
| Max. remote output current | 500 mA |
| Fuse | 1 x 20 A Maxi-fuse (APX) |
| Additional features | Variable input sensitivity fully stabilized internal power supply with Start-Stop capability, 56 Bit digital signal processing, internal memory for 2 different sound setups, USB input, ADEP.2 circuit, Auto Remote switch, MEC slot, input for optional remote control, stereo line outputs with balanced output transformers (floating ground) |
| Dimensions (H x W x D) | 44 x 185 x 139 mm / 1.73 x 7.28 x 5.47“ |
1 x MATCH Plug & Play amplifier PP 62DSP
1 x USB cable
1 x Plug & Play connection cable PP-ISO 2 (2.20 meters)
1 x Mounting material
1 x Instruction manual
Note: For car radios without ISO connectors an additional ISO-adaptor (PP-AC cable harness) is needed, which has to be connected between the ISO cable harness (PP-ISO) and the car radio.

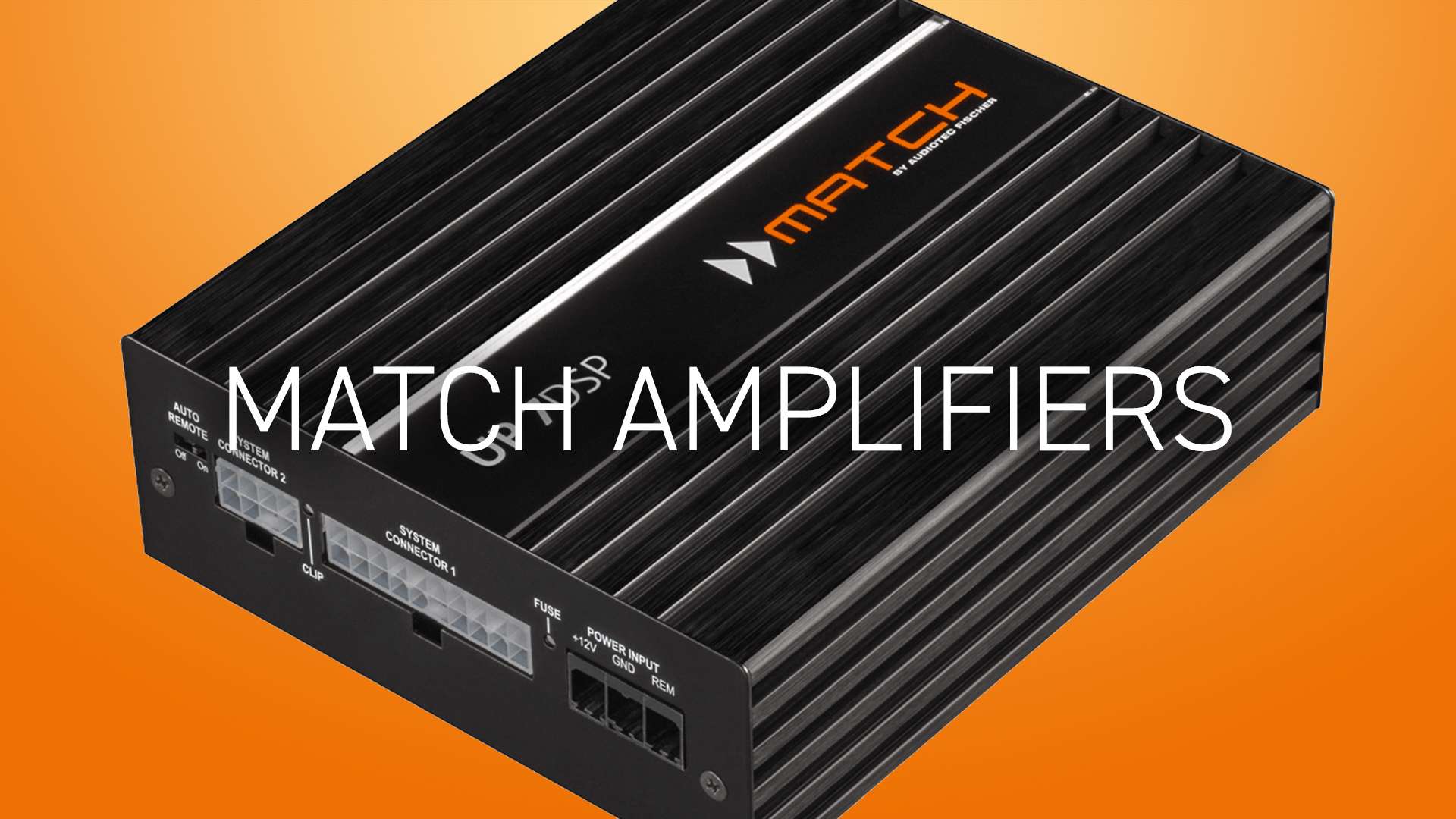

The MATCH amplifier series is divided into three product lines and differs in their plug & play character, performance, and installation options. The HiFi genes of HELIX and BRAX of course have been transferred into the MATCH series as well as all of our amplifiers being equipped with sound-optimizing DSP technology (Digital Signal Processor).
Audiotec Fischer offers MATCH vehicle-specific sound setups for download. Nevertheless, the amplifiers can be professionally tuned by an Audiotec Fischer authorized representative for the ultimate custom audio solution, adjusted to your own musical taste using our approved and intuitive DSP PC tool software.
Regardless of which variant you choose: the sound difference that you will experience compared to the factory or premium factory system will be overwhelming. This is a promise!
Match Sound Setups are custom-measured and ready-to-use DSP Setup configurations for common cars. These Setups are available for the MATCH amplifiers PP62DSP, PP86DSP & UP 7BMW.

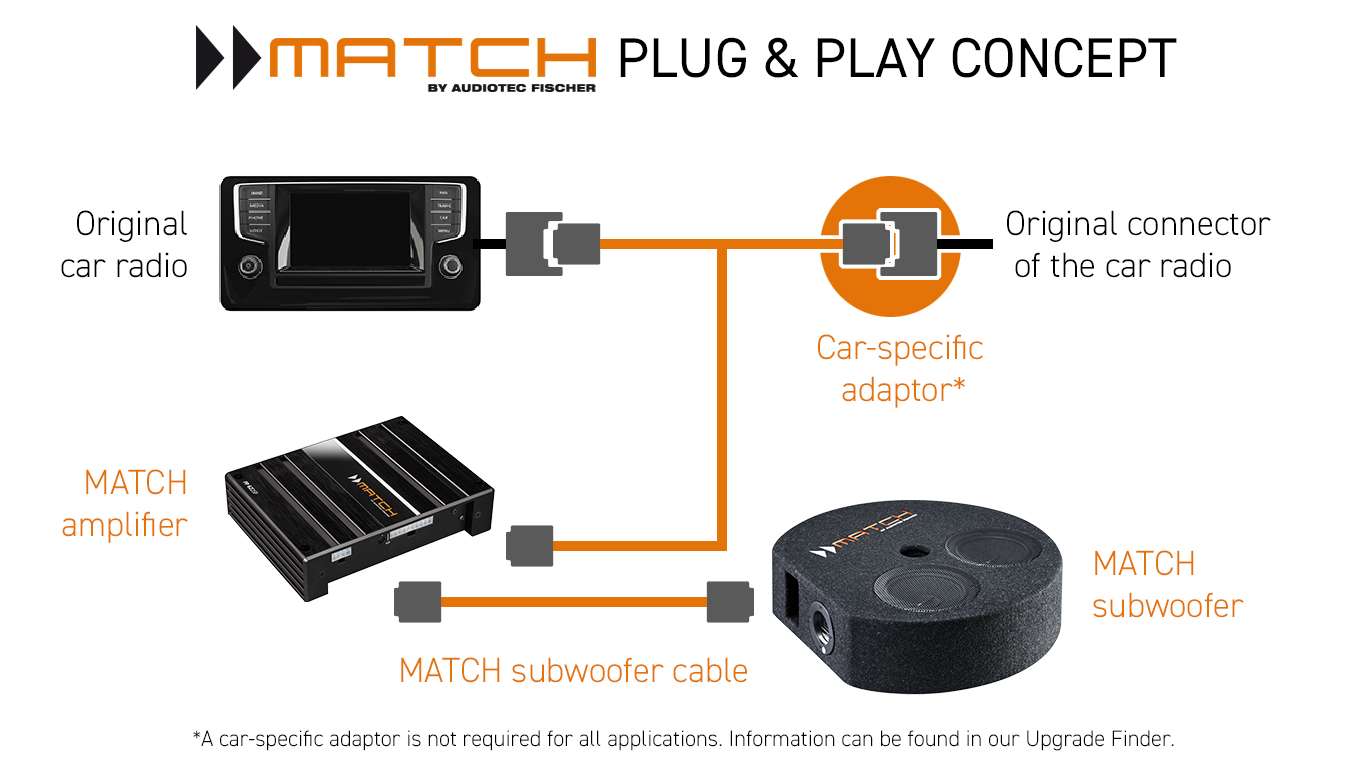

With the help of our Upgrade finder, you can see quickly and easily whether you can install a MATCH Plug & Play amplifier in your vehicle and if you need an ISO adapter or other accessories for the connection.

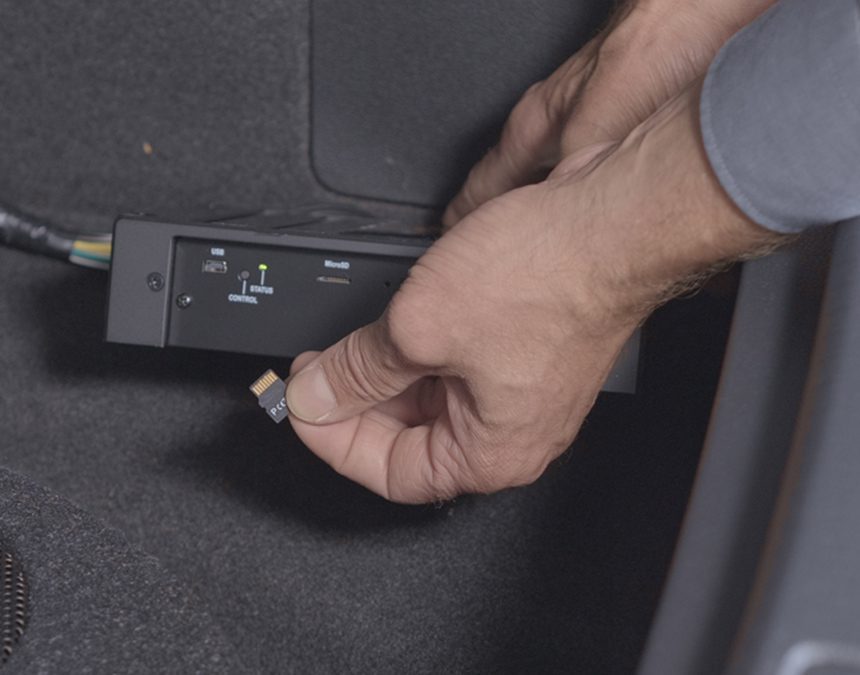

The vehicle-specific MATCH sound setup is loaded into the amplifier via a microSD card. This contains all data on the frequency response and the time correction relative to OEM factory speakers and audio system.

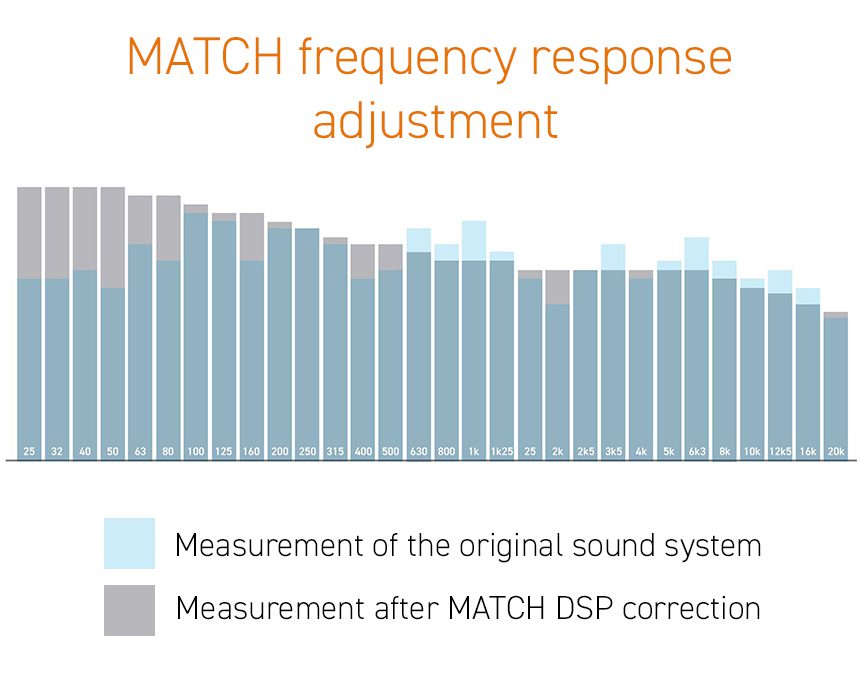

The factory-set faulty frequency response is adapted to the reference curve determined for vehicles using DSP technology. This is the only way to achieve linear reproduction and a pristine, detailed and punchy sound stage.

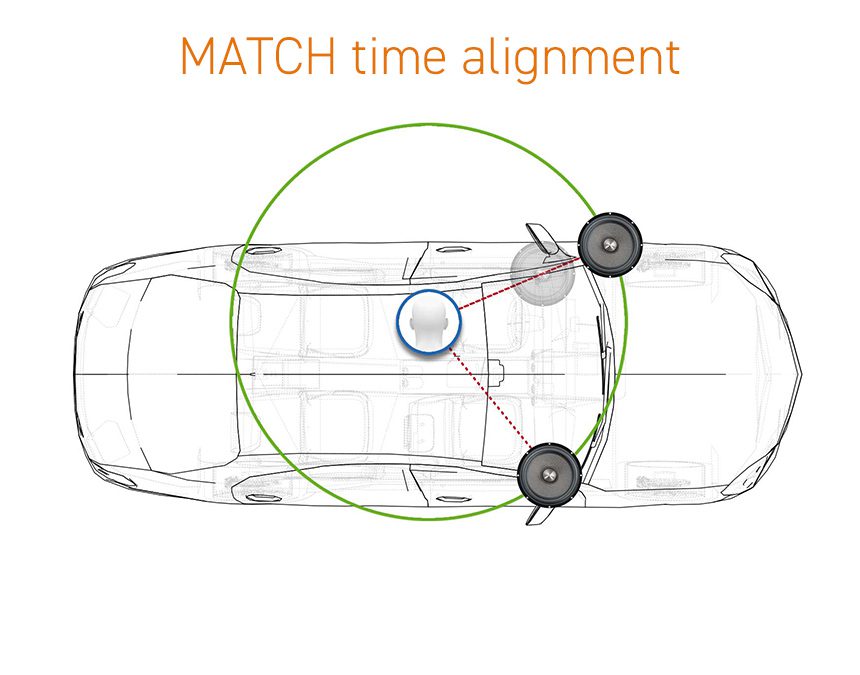

The driver's sitting position offset from the center is adjusted by a time correction. This significantly improves the dynamics and stereo presentation and ensures all audio arrives at the listener's position at the same time, bringing the audio to life.

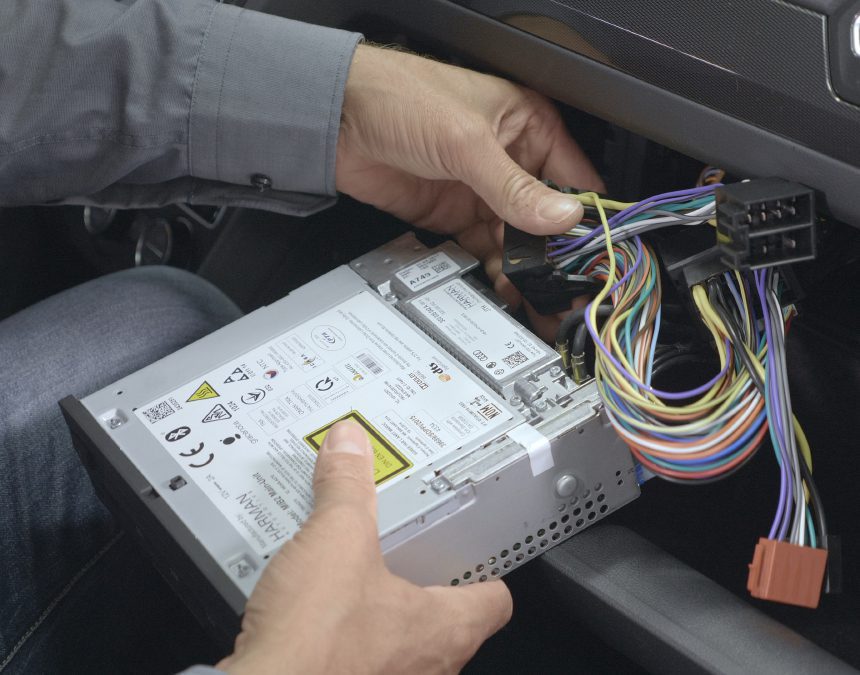

Connection of the pre-assembled MATCH cable to the factory radio. It is not necessary to cut the factory cables.

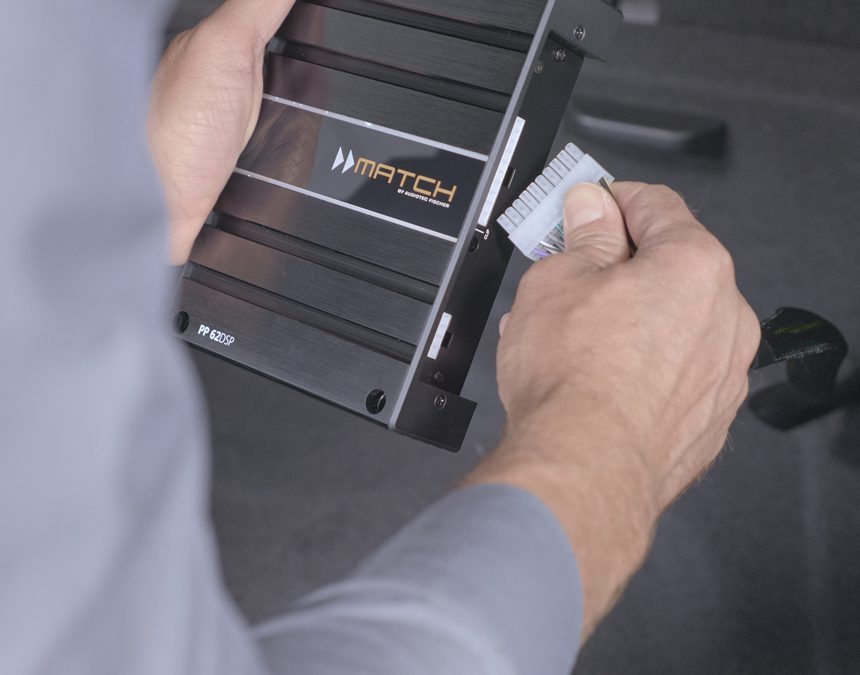

The amplifier is connected to the factory radio using the MATCH cable harness.
Connection of the pre-assembled MATCH cable to the factory radio. It is not necessary to cut the factory cables.
